YZK450
Structure Characteristics
|
Structure |
Item |
Standard Value |
|
Inner Conductor |
Material |
Silver Plated Copper |
|
Construction（mm） |
1/1.12 |
|
|
Nom.Dia(mm) |
1.12 |
|
|
Insulation |
Material |
ZF402 |
|
Nom.Dia(mm) |
3.10 |
|
|
Inner shield |
Material |
Silver Plated Copper Strip |
|
Nom.Dia(mm) |
3.3 |
|
|
Interlayer |
Material |
High temperature aluminium foil |
|
Nom.Dia(mm) |
3.45 |
|
|
Outer shield |
Material |
Silver Plated Copper Wire |
|
Nom.Dia(mm) |
3.90 |
|
|
Jacket |
Material |
Blue FEP |
|
Nom.Dia(mm) |
4.30 |
Electrical performance parameters
|
Item |
Standard Value |
Attenuation（@25℃&Sea Level） and Power handing@（@40℃&Sea Level） |
||
|
Impedance (Ohm) |
50 |
（MHz） |
（dB/100m） |
（W) |
|
Capacitance（pF/m） |
80 |
500 |
23.14 |
1023 |
|
100 |
10.12 |
2339 |
||
|
Velocity of Propagation |
82% |
3000 |
59.95 |
395 |
|
6000 |
88.01 |
269 |
||
|
Max Operating Frequency（GHz） |
26.5 |
8000 |
103.60 |
228 |
|
9000 |
110.83 |
214 |
||
|
Screening Effectiveness（dB） |
＞100 |
10000 |
117.77 |
201 |
|
12000 |
130.93 |
181 |
||
|
Dielectric Withstanding Voltage(V@DC) |
2500 |
18000 |
166.44 |
142 |
|
26500 |
210.52 |
112 |
||
|
Phase Change VS Bending（°/GHz） |
±0.3 |
|
|
|
|
K1 |
0.993675 |
|||
|

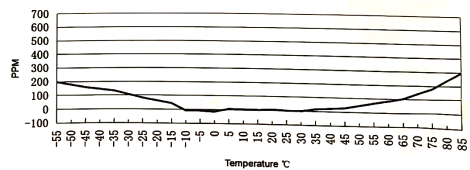

Phase Change VS Temperature@（-45~+85）℃ |
≤450 PPM |
K2 |
0.00184 |
|
|
IL=K1*√FMhz+K2*FMHz |
||||
Mechanical and environmental performance
|
Mechaical &Environmental Characteristics |
（Phase change VS Temperature） |
|
|
Min Bending Radius (Static) |
21.0mm |
 |
|
Min Bending Radius (Dynamic) |
43.0mm |
|
|
Weight |
0.046kg/m |
|
|
Operating Temperature（℃） |
-55~125 |
|
