670-250 RG401 FEP sheath

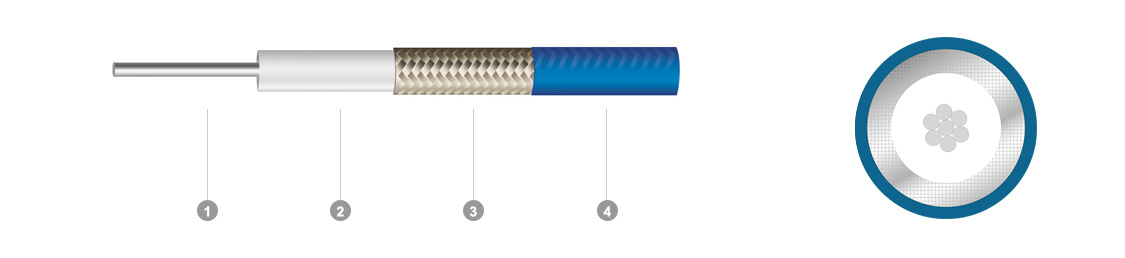

Structural parameters
|
670-250/50 |
P/N |
YZ-670250/50-003 |
|
① Inner conductor |
Material |
Silverplated copper wire |
|
Constitute |
1/1.65 |
|
|
OD (mm) |
1.65±0.02 |
|
|
② Insulation |
Material |
PTFE |
|
Color |
Natural |
|
|
OD (mm) |
5.25±0.12 |
|
|
③ Outer conductor |
Material |
Tinned copper wire braid+Tin soaked |
|
Constitute |
16/5/0.2 |
|
|
OD (mm) |
6.15±0.15 |
|
|
Coverage (%) |
100 |
|
|
④ Jacket |
Material |
FEP |
|
OD (mm) |
6.85±0.2 |
Electrical performance parameters
|
Capacitance(pF/m) |
95±4 |
Attenuation |
|
|
0.5GHz |
0.16db/m |
||
|
Velocity(%) |
70±2 |
1GHz |
0.24db/m |
|
2GHz |
0.37db/m |
||
|
Impedance(Ω) |
50±2 |
3GHz |
0.48db/m |
|
5GHz |
0.65db/m |
||
|
Standing wave ratio |
≤1.2 |
10GHz |
0.99db/m |
|
18GHz |
1.42db/m |
||
|
Rating voltage(V) |
30 |
|
|
|
|
|
||
|
Operating frequency(GHz) |
6 |
|
|
|
|
|
||
Mechanical and environmental performance
|
Operating temperature |
-40℃~+90℃ |
|
Min.bending radius static |
30MM |
|
Optimal preservation period |
2 monthsTwo Months |
|
Packing mode |
- |
