1.13MM double tin wire

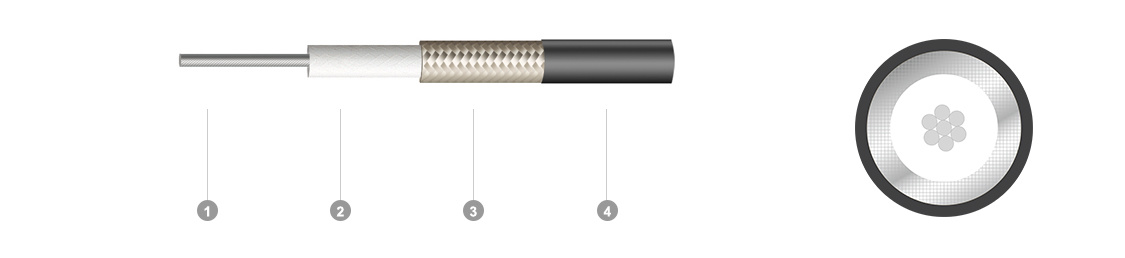

Structural parameters
| 113/50 | P/N | YZ113/50-S2 | |||
| ① Inner conductor | Material | Tinned copper wire | |||
| Constitute | 7/0.08 | ||||
| OD (mm) | 0.24±0.02 | ||||
| ② Insulation | Material | FEP | |||
| Color | Clarity | ||||
| OD (mm) | 0.7±0.03 | ||||
| ③ Outer conductor | Material | Tinned copper wire | |||
| Constitute | 16/4/0.05 | ||||
| OD (mm) | 0.9±0.05 | ||||
| Coverage (%) | 90±5 | ||||
| ④ Jacket | Material | FEP | |||
| OD (mm) | 1.13±0.05 |
Electrical performance parameters
| Electrical characteristics | |||||
| Capacitance(pF/m) | 98±4 | Attenuation | |||
| 1GHz | ≤2.32db/m | ||||
| Velocity(%) | 70±2 | 2GHz | ≤3.27db/m | ||
| 3GHz | ≤4.01db/m | ||||
| Impedance(Ω) @1ns |
50±2 | 4GHz | ≤4.64db/m | ||
| 5GHz | ≤5.25db/m | ||||
| Standing wave ratio @0~6GHz |
≤1.3 | 6GHz | ≤5.80db/m | ||
| Rating voltage(V) | 30 | ||||
| Operating frequency(GHz) | 6 | ||||
Mechanical and environmental performance
|
Operating temperature |
-55℃~+125℃ |
|
Min.bending radius static |
4MM |
|
Optimal preservation period |
Two months |
|
Packing mode |
Paper Plate 1000M/Plate |
